Continental cable Oval Sleeves and Stops
Copper Sleeves and stops
Our oval stop sleeves are available in copper, stainless steel and aluminum. Copper can be nickel, zinc or tin plated if needed.
Plain Copper Oval Sleeves
| To Fit Cable Dia. |
Cont. Cable Part No. |
Weight Per 100 Pcs. (Lbs) (Approx.) |
|---|---|---|
| 1/32" | 5005-1 | .048 |
| 3/64 | 5005-1.5 | .174 |
| 1/16 | 5005-2 | .290 |
| 5/64 | 5005-2.5 | .350 |
| 3/32 | 5005-3 | .601 |
| 1/8 | 5005-4 | 1.62 |
| 5/32 | 5005-5 | 2.28 |
| 3/16 | 5005-6 | 5.2 |
| 7/32 | 5005-7 | 4.55 |
| 1/4 | 5005-8 | 7.85 |
| 5/16 | 5005-10 | 11.86 |
| 3/8 | 5005-12 | 15.8 |
| 1/2 | 5005-16 | 39.56 |
Zinc Plated copper Oval Sleeves
| To Fit Cable Dia. |
Cont. Cable Part No. |
Weight Per 100 Pcs. (Lbs) (Approx.) |
|---|---|---|
| 1/32" | 5006-1 | .048 |
| 3/64 | 5006-1.5 | .174 |
| 1/16 | 5006-2 | .290 |
| 5/64 | 5006-2.5 | .350 |
| 3/32 | 5006-3 | .601 |
| 1/8 | 5006-4 | 1.62 |
| 5/32 | 5006-5 | 2.28 |
| 3/16 | 5006-6 | 5.2 |
| 7/32 | 5006-7 | 4.55 |
| 1/4 | 5006-8 | 7.85 |
| 5/16 | 5006-10 | 11.86 |
| 3/8 | 5006-12 | 15.8 |
| 1/2 | 5006-16 | 39.56 |

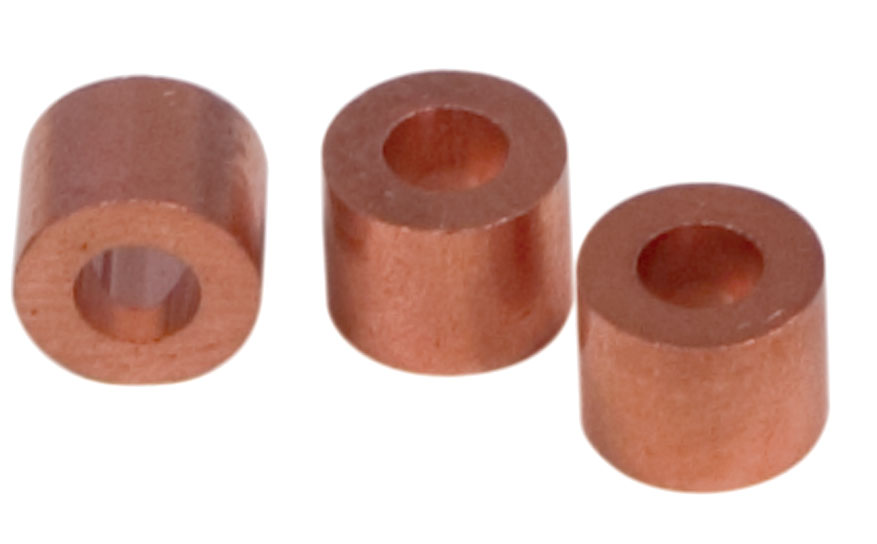

Plain Copper stops
| To Fit Cable Dia. |
Cont. Cable Part No. |
Weight Per 100 Pcs. (Lbs) (Approx.) |
|---|---|---|
| 1/32" | 6005-1 | .075 |
| 3/64 | 6005-1.5 | .139 |
| 1/16 | 6005-2 | .193 |
| 3/32 | 6005-3 | .781 |
| 1/8 | 6005-4 | .702 |
| 5/32 | 6005-5 | 1.18 |
| 3/16 | 6005-6 | 1.06 |
| 7/32 | 6005-7 | 2.18 |
| 1/4 | 6005-8 | 6.18 |
| 9/32 | 6005-9 | 6.10 |
| 5/16 | 6005-10 | 5.30 |
| 3/8 | 6005-12 | 4.58 |
View Stainless Steel Oval Sleeves View Copper Oval and Stop Sleeves View Aluminum Oval and Stop Sleeves
Download Our Product Catalog
MIL-DTL-83420
